Keithley Model 2600B SYSTEM SourceMeter - Current Pulse (Not Measure)

-. Model : Keithley 2612B SYSTEM SourceMeter
-. DUT (Device Under Test) : 1Ω Resistor (10 Watt)
-. 1A, Pulse Width (500 usec), Fixed 1A Current Range & 200V Range, 100V Compliance Setup

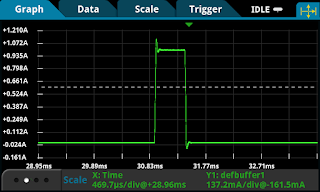

[Keithley 7510 Fast DMM Current Measurement]

[Voltage Measurement of DUT] - Tektronix THS 3024 Oscilloscope
